First Punch Die & Carbide Dies Tools

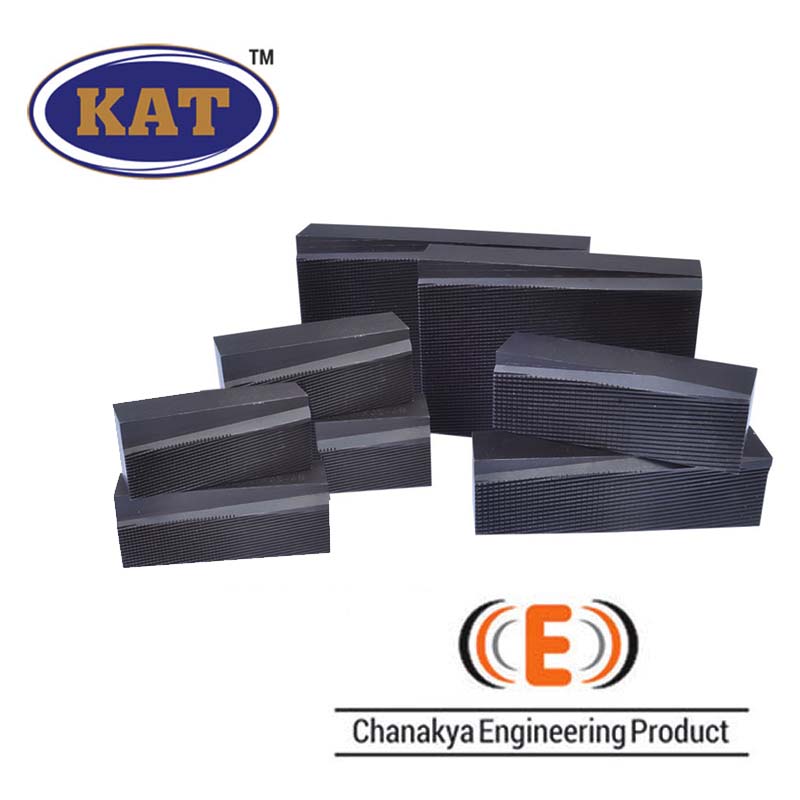

First Punch Check punch holder for squareness of bore to seat. We can produce full set of various bugle head Drywall Screw Header Carbide Die, Thread Rolling Dies for SS, CS or 2S threads, Header Punch, Cut-Off Die, Cut-Off Knife, K.O.Pin, 2nd Punch Case, 1st Punch Die,1st Punch Case, Ejector, 1st Punch Retainer, Spring and Feed Rollers. Please indicate the Header Machine Model Die Case and Screw Size & Length or detail drawings for reference when inquire or order. .

Tungsten Carbide Punch Dies

We Suppliers Wholesaler Traders wide range of Tungsten Carbide Heading Die as per customer drawing. We specialise in applications such as Blanking and cupping, Drawing, Heading, Necking etc. mainly for Defence and Automobile ancillaries...

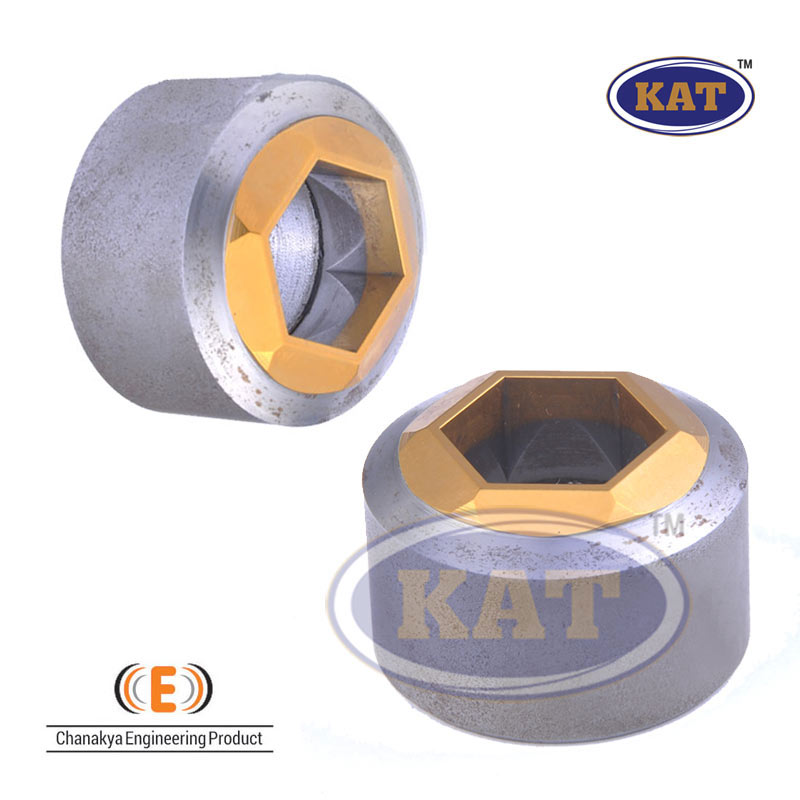

Trimming Dies - (Hex Bolt Head)

Trimming die is used to making hex head or square head bolt to form the head shape. There are two types of die, one is “solid” one piece and another is two pieces assembled with inserted. The customized design is also available. Material: SKH-9, M2, SKH-55 and SKH-59. Sureface treatment: Plain, TiN, TiALN.

Screw Head Die - Cold Heading Dies

We are suppliers of all types of Carbide Steel Heading Dies. These dies are used for Cold forging and Hot forging. The material used in dies is Hot Die Steel (HDS) of grade H11 and H13 for outer casing and the insert is of Tungsten Carbide. Depending on the application, different grades of Tungsten Carbide are used such as GT55, GT40, GT30, GT20, G50, G40, G30, G20 etc. consisting of 25% or 20% or 15% or 12% Cobalt. The carbide inserts are Cold Pressed or Shrink Fitted or taper fitted again depending on application or customer requirement. The Carbide Heading Dies are with plain hole, Pointing, extrusion, trap extrusion, Hexagonal, Hex extrusion, flat extrusion, trilobular for different fasteners, screws and bolts. Fasteners can be of mild steel, stainless steel, high tensile fasteners of alloy steels. The carbide dies can be used for full thread, half thread bolts/screws. They can be socket head, hex head, counter sunk head, carriage bolt, roof bolt, coach screws, trilobular screws or other special screws / bolts.

Nut Former Tools and Dies

There are various cold forging dies for not only screw bolt nut forming tools, screw bolt nut fastener forming tools we produced for domestic and overseas market including screw forming tools, bolt forming tools, nut forming tools, cold forging tools, but also for various industries customization design.
These nut forming dies are available in various shapes. We manufacture mandrels to maintain the inner diameter of the tube and ensure that high grade raw materials are used during the forming process to give our products the required strength and longevity..

Features:

1. Accurate size
2. High compressive strength
3. Corrosion resistance
4. Strong structure
5. Longer functional life
6. Preservative

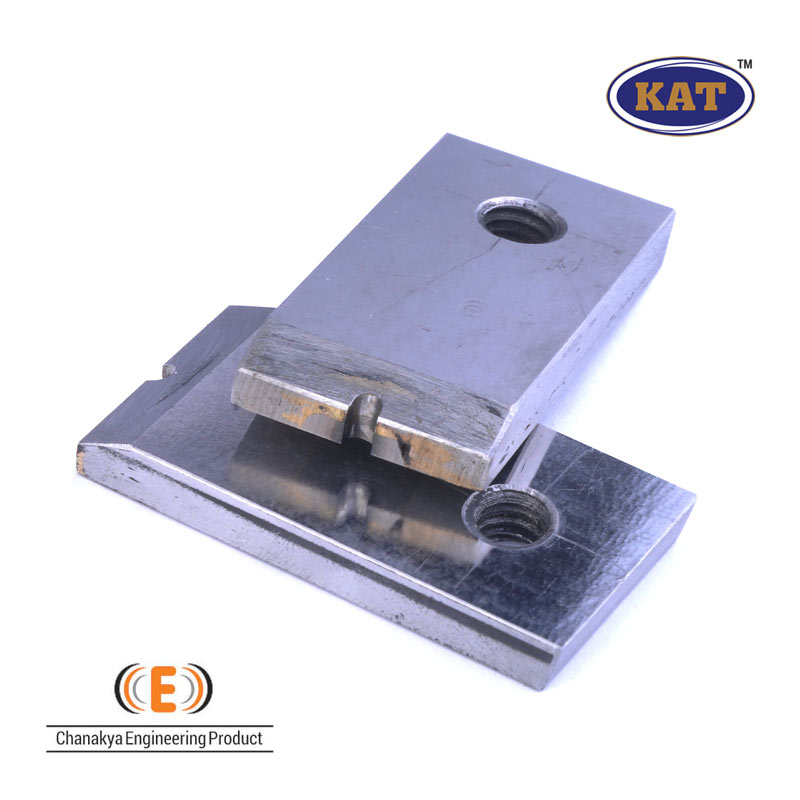

Cut-off Knives & Cut Punch Die

Chanakya Industries manufactures and supplies machine knives and industrial blades such as industrial cut off blades and knives in circular and flat shapes. Kat Brand We offer good quality and competitive price. Please let us know the specification you need..

K. O. Pin and Punch Moulds Dies

Metal Components: Nut Piercing Punches Pin punch style for Multi Die Punch, Moulds, Dies Hex Indent and Socket Head are available. Recess types are for Philips, Pozi, Slotted, 6-Lobe, Hex Socket and your special specification also Premium Multi-Die Pin Punch Moulds Die available. Head style for Pan, Round, Flat, Truss, Oval, etc. Pin is including knock out pin, ejector, special pin & piercing pin, etc.

K. O. Pin and Nut Former Tools

K. O. Pin The pin is including knock out pin with head, knock out pins without head, knock out pin with 60˚head, knock out pins with buttom assembly pin, ejector pins, extrusion pins, round pins, knock out pins with marked letters, carbide forging pins. Knock out pin, ejector, special pin & piercing pin, etc.

Nut Former Machine

Chanakya Engineering Products (CEP) Industries We are engaged in manufacturing and offering Cold Forging Nut Former Machine which is used for producing Nut. These are fabricated by This high capacity hot nut former is suitable for forming nuts from M14 up to M42 with a maximum width across flats of 33 to 65 mm. The hot nut former requires a low investment and is designed for a very cost efficient production of all kind of nuts, using high grade raw material and are available in different specifications as per our client's requirements.

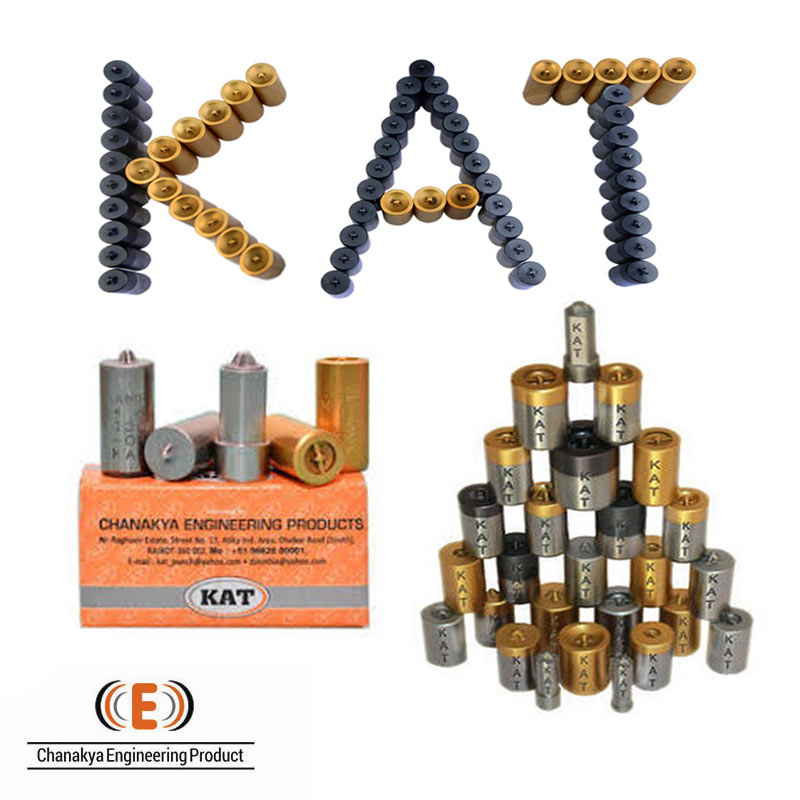

Kat Brand Fastener Forming Tools Header Punch (Slef Dirlling Screw)

Please specify the details of header punches as follows when you inquire or order:

1. Recess punch is used to form the recess & head style of the screw.
2. The Carban Steel of header punches you need or the material of screw you used.
3. The specification of standard you use, for examples: JIS, DIN or ANSI
4. Screw Application: Machine Screw , Tapping Screw , Wood Screw or any others .
5. Head Style: Flat head , Pan head , Truss head , Binding head or any others .
6. Nominal Size: JIS-M20, M23; ANSI-#4, #8; DIN-M30, M35;
7. Recess Driver: Phillips , Slot, Phillips and Slot Combination, Pozi ect .
8. Dimension : 12x25, 14x25, 18x25, 23x25;
9. Coated : Plian , TIN Coated , TILAN Coated
